Work Order - Measurement Points Tab

Introduction

This tab in the Work Order page shows all the Measurement Points for all of the technical objects in the Work Order.

Business and SAP Context

Unlike standard SAP, in BlueWorx you don't need to have specifically defined these Measurement Points in the Work Order PRT's. Rather BlueWorx assembles them for you automatically for all the FL and Equipment contained in the Objects List of the Order.

Important Information

BlueWorx configuration can control whether users can create Measurement Documents for Points not defined as PRT. It also control whether more then one Measurement Reading per Point for PRT's can be entered. See Settings Tab - Orders for more information on the options.

Measurement Points Tab

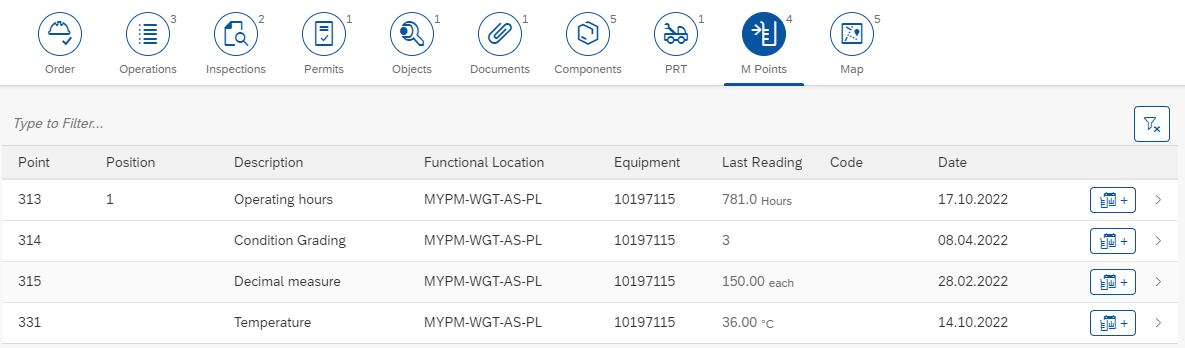

The following is an illustration of this screen:

The following screen fields and controls are defined, where not documented they are considered self explanatory or are explained elsewhere:

Field/ Control	Explanation/ Use
Type to Filter	Filter the list
	This button is shown only where the list has been filter via the Objects List. On press it clears this filter and any other filter/ filter values. This button/ function was introduced in the SP12.7 patch.
	Select to Enter Measurement Document. This button will only be shown if the config setting Settings > Orders > Allow non-PRT entries Order assignment is set to false OR the Measurement Point is listed as a PRT item.
Select list item	Select list item to Measurement Point Detail Page
