Existing SAP Classification Map Data on Conversion

On upgrade to SP7 or above, from all version prior to SP7, all existing map data, configured using SAP Classification Characteristic values, will be automatically converted to use the new Layer functionality as follows:

  • ID: FL or Equipment Object Type
  • Description: Blank
  • Function: Location
  • Feature Type: Point
  • Object Type: FL or Equipment Object Type
  • Zoom: It's min/ max zoom will be applied as 16 and 23 respectively
  • Value based rendering: Off
  • Update geometry from characteristic: On
  • Icon: As no icon will be defined it will use the default 'Point' icon as was previously used in BlueWorx.

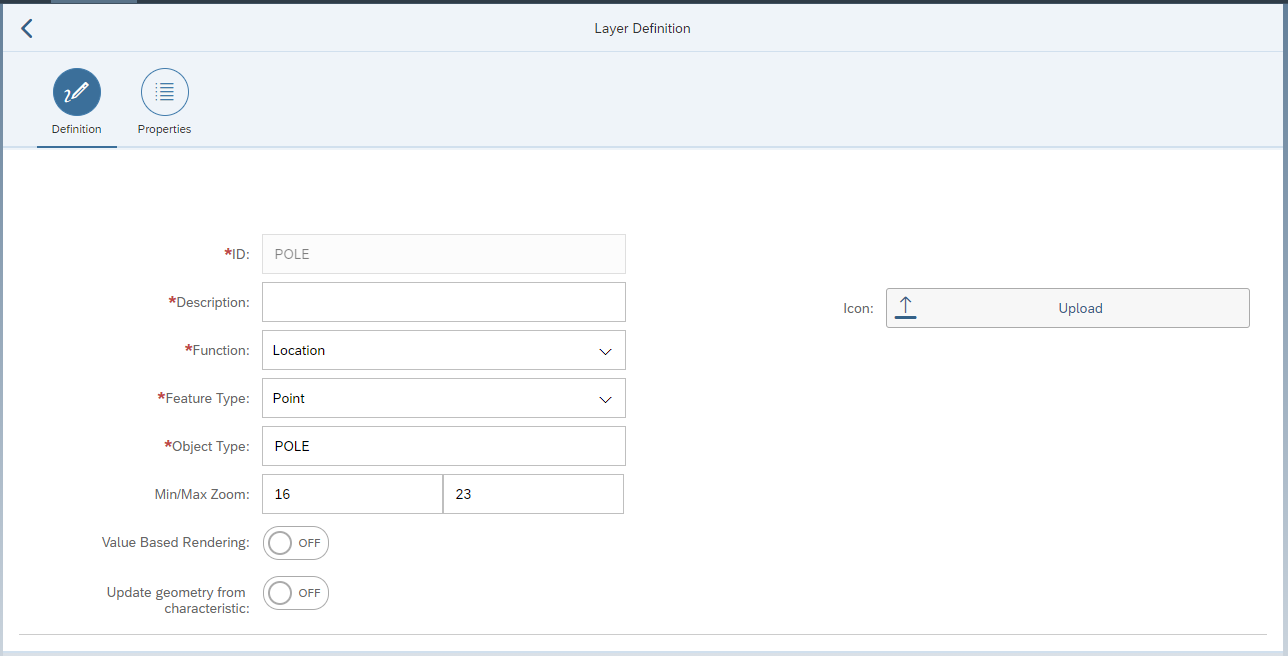

The following is an example of a converted record:


Following the upgrade administrators can enrich the content by:

  • Adding a description
  • Adjusting the Feature Type (from Point to Linear or Polygon)
  • Changing the Min/ Max zoom levels
  • Uploading a suitable Icon (16px x16px png maximum recommended)

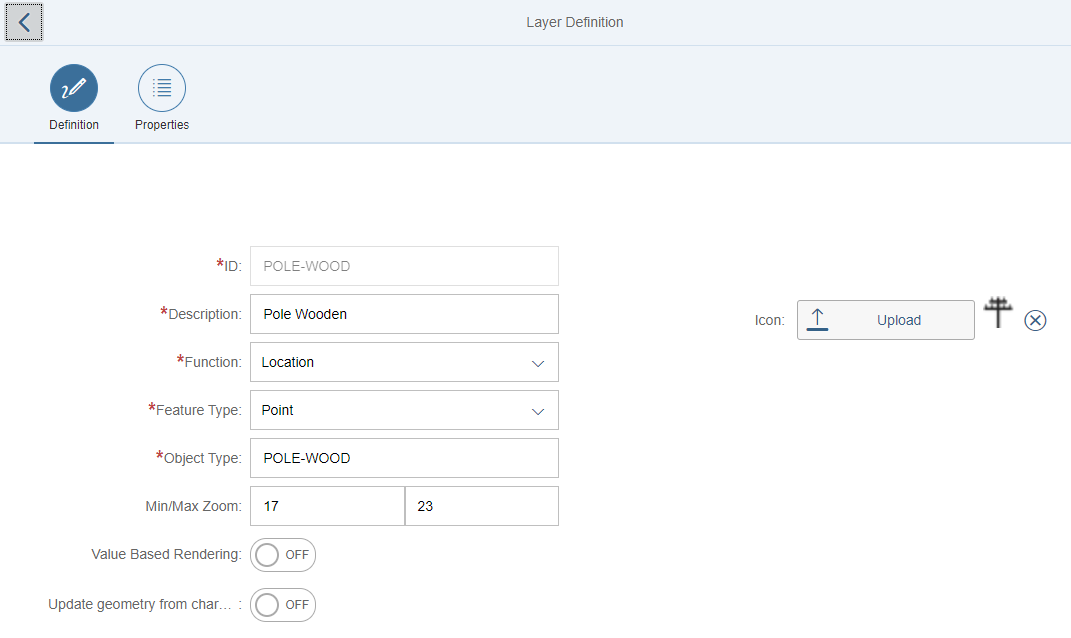

Here's an example of a wooden pole that's been maintained post conversion:

Administrators can also maintain additional properties and rendering information as described here.
