Map Page

BlueWorx provides the ability to display geo-spatial information in support of maintenance operations.

For details on the symbols and manipulation of the map see the article Map Page - Concepts and Map Navigation

Accessing the Map

The map is accessible from a number of places including:

  • BlueWorx Home Screen
  • Work Order Objects Tab
  • Notifications Page Map Tab
  • Functional Locations List
  • Functional Location Map tab
  • Equipment List
  • Equipment Map tabs

Display settings

Users can change the information displayed on the Map using the Display button at the bottom left of the Map page:

On a Tablet or browser the Display settings screen takes over the left hand portion of the screen. Selecting Display toggles this on and off. On a Phone then the Display setting page will take over the whole screen.


The details of each of the options accessible from within Display settings is accessible from these articles:

Functions

Reset

The device and BlueWorx application can be doing a lot of work and its performance depends on a lot of factors outside of the product developers control - like communication to and responses from the GEO system. If things aren't working or being displayed right then reset the display.

Adding a Favorite Place

You can add a favourite place at any location on a map and give it a descriptive value. To initiate use the following button:

Favorite places will then be accessible from the Favorites and History page.


Note that this functionality provides quick navigation to a specific place, its does not also apply filters nor adjust the map being used. These can be separately adjusted according to the options detailed elsewhere on this page.

Selecting a Favorite Place

User can access previously added favourite places using the following button:

Favorite places will then be accessible from the Favorites and History page.

Google Street View

If configured and when online you can initiate Google Street view using the following lower right hamburger menu option:

For further details on this function please see the  Map - Google Street View page.

Download Screen

On a mobile device you can download Map tiles and Layers for offline use, where they have been so configured. This option is accessible using the following lower right hamburger menu:

For further details on this function please see the Map - Download for Offline page.

Selecting Map Layer Items

On Selecting a BlueWorx Map Item

When you select one of the Technical Objects then it will show the following dialog from which you can access the details of the object or create a Notification:

On Selecting a BlueWorx Map Item Cluster

When you select a cluster of BlueWorx items at its lowest level then it will show you the various Objects within the cluster. You can then navigate to the detailed screen for each:

On Selecting a GEO Layer Item

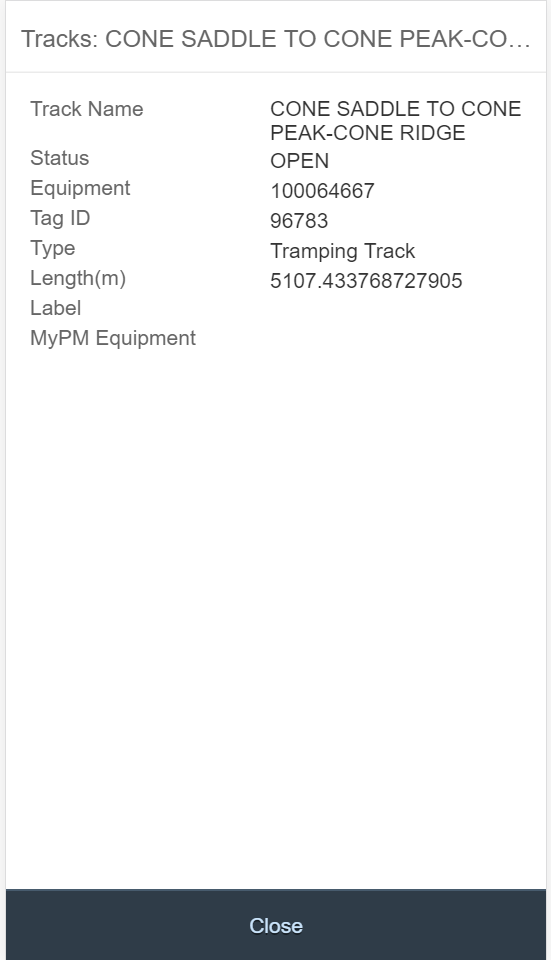

When you select a single feature layer then a popup will display the configured information to display from the map server:

On Selecting Multiple GEO Layer Items

If you select a map area where multiple BlueWorx and or map features are located then it will offer a list of the objects relative to your selection:
